Cabinet Material: | Die Casting Aluminum for rental purpose | Screen Plainness: | <±1mm |
---|---|---|---|
Screen Lifespan: | ≥100,000 hours | Humidity: | 10%-95% |
Power Supply Mode: | AC220±10% 50Hz/AC110±10% 60Hz | Frame Frequency: | ≥60Hz |
Brightness of white balance: | ≥1200cd/m2 | ||
تسليط الضوء: | Led Screen Rental,Ultra Thin Led Screen,Ultra Thin Led Screen |
Application:
Our full color LED display are widely used in shopping mall,Highway,TV Shows,school, commercial advertising,Community centers, conference,internal,Sports Stadium,live meeting,indoor stadium,exhibition,
banks, station weiting area, airports and so on .
Parameter:
Item Name | Parameter |
Model No | LW-P4-16S |
Module size | 256mm*128mm |
Pixel pitch | 4mm |
Pixel Density | 62500 pixels/m2 |
Pixel configuration | 1R1G1B |
LED Package mode | SMD2121 |
Module resolution | 64dots(H)*32dots(V) |
Drive type | Constant drive |
Scan mode | 1/16 scan |
Port type | HUB75-A |
Brightness of white balance | ≥1200cd/m2 |
Cabinet Dimension | 512mm*512mm |
Module Quantity | 8pcs |
Cabinet Resolution | 128*128 |
Cabinet Material | Die Casting Aluminum for rental purpose |
Best viewing distance | 4M~15M |
Best viewing angle | 120°(H) 60°(V) |
Average Power consumption | 915W/m2 |
Max.Power consumption | ≤1830W/m2 |
Current | ≤20mA(single LED) |
Frame Frequency | ≥60Hz |
Refresh frequency | ≥600HZ |
Power Supply Mode | AC220±10% 50Hz/AC110±10% 60Hz |
Temperature | storage:-35ºC~+85ºC |
working:-20ºC~+50ºC | |
Humidity | 10%-95% |
Grey scale/colors | 256levels of each color(RGB)/16.7M colors |
Screen Lifespan | ≥100,000 hours |
Screen Plainness | <±1mm |
Blind Spot Rate | <0.0001 |
CPU | Pentium4 or above |
Operation system | WIN98/2000/NT/XP |
Control method | Synchronization |
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World. |
Our service:

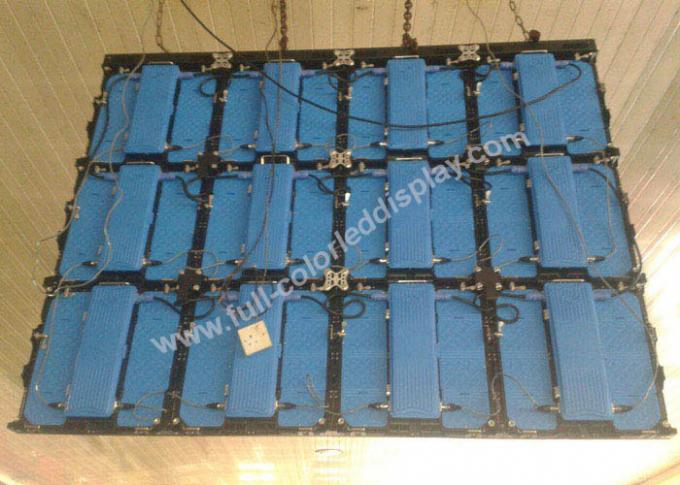

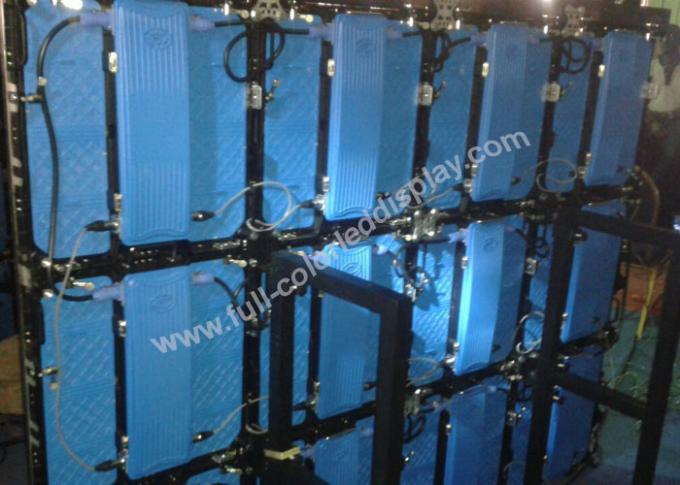

Project case:

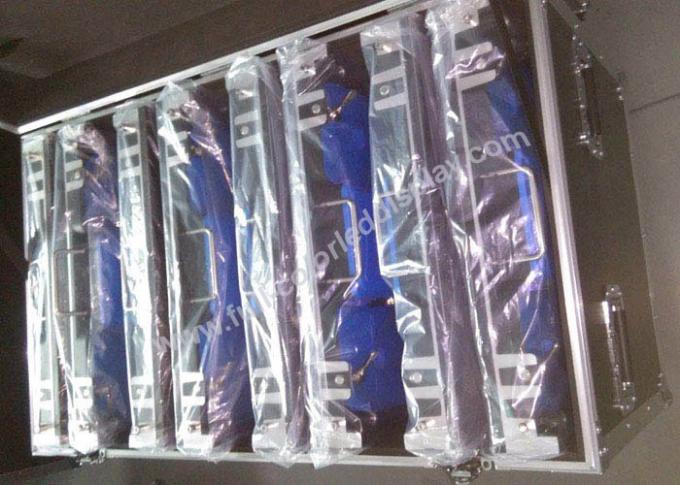

Packaging & Shipping:
